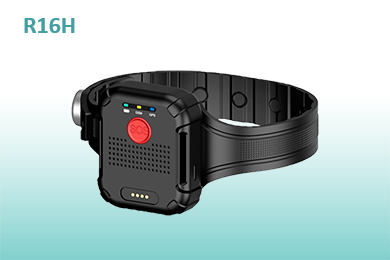

R16H

the Ankle GPS Tracker

R16H is a 4G ankle bracelet with GPS/WiFi/LBS/Blue-tooth locating function, there is a embeded circuit inside both straps, and also a IR sensor on bottom case of the band body. It locates in real time, and it is tamper proof and waterproof. It can be used for offenders, parolee, home arrest with anti-disassembly metal buckle, and it also can be used for normal tracking with common buckle.

FEATURES

GPS AGPS LBS WIFI POSITION

GPS real time tracking at interval of 60s. A-GPS for fast locating from satellites. LBS and WiFi for accurate indoor positioning.

SOS CALL AND ALERT

Once the SOS button is pressed, the watch will call the phone numbers in family list and trigger an SOS alert.

Cut Off Alert

If the wearer takes off or cut off the strap, it will trigger an alert.

SAFE ZONE ALERT

Be able to set 10 safe zones for entering and leaving area alert.

LOW BATTERY ALERT

When the watch is under low battery, it will trigger an alert, reminding you to recharge the watch.

HISTORY PLAYBACK

Check the places where the wearer has been to.

APPLICATIONS

SPECIFICATIONS

Items  Parameters
GPS Positioning Accuracy 5m
Bands FDD+WCDMA+GSM: Band 2\3\5\8
LBS Positioning Accuracy 100-500m
GSM Antenna Built-in
GPS Chipset U-blox 7020
GPS Sensitivity -163 dBm
GPS Positioning Accuracy 5-25m
GPS Antenna Built-in
Wifi Chipset MT 5931
Wifi Positioning Accuracy 5-25m
Wifi Antenna Built-in
G-Sensor BOSCH BMA223
Pedometer BMI160(3 axis accelerometer +3 axis gyroscope)
Screen 1.3” TFT
Camera 0.3M pixels
Speed Accuracy 0.1m/s
Time Accuracy Synchronize with GPS
GPS Data WGS-84
Hot Start <1s
Warm Start <38s
Max Altitude 18000m
Max Speed 515m/s
Gravity Acceleration <4g
Operating Temperature -20℃—65℃
Humidity 5%—95%
Size 58mm×42mm×15mm
Simcard Micro simcard
Battery Rechargeable lithium polymer battery 680mAh
Power Supply 3.7V-5V, 0.2A-0.5A
Standby >70h
Ringtone 64 polyphonic
Ringtone format MP3, MIDI, AMR, AAC, WAV
Built-in Ringtone numbers MIDI 5

ACCESSORIES

Standard Accessories    USB Charging Cable

Optional Accessories    None

CERTIFICATES

CE, RoHS, FCC
