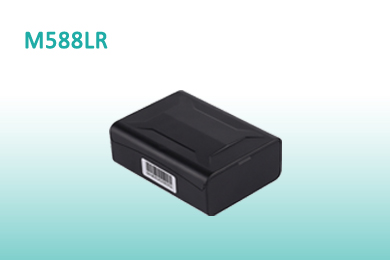

M588LR
Rechargeable Big Battery Wireless GPS Tracker
M588LR GPS Tracker is used for locating and tracking objects, assets, and other items. It is built-in two strong magnets to make it be adsorbed on the chassis. It not only can be put in objects, but also can be installed on motorcycles, electric vehicles and even bicycles for real time tracking.
FEATURES
ACCURATE GPS AGPS LBS POSITIONING
Real time GPS location and assisted by AGPS & LBS, the accuracy deviation is less than 5 meters.
RESEND DATA FROM SIGNAL DEAD ZONE
In GSM signal blind areas, the device will store all the GPS data, and resend them immediately to the server in the case of signal recovery.
LONG TIME BATTERY
Big capacity of battery ensures long working time and standby time.
HISTORY PLAYBACK
Check the history location to know where the electric car/motorbike went.
TRACK LOCATION BY WEB, APP, SMS
Three methods help you to know the car location whenever and wherever.
SMS CONFIGURATION
Configure the device by SMS even you are staying thousands of miles away.
IPX5 WATER PROOF
Waterproof feature ensures the device work well under unexpected environment.
MULTIPLE ALERTS
Instant alert for low power, overspeed, geo-fence.
APPLICATIONS
SPECIFICATIONS
| Items | Parameters |
| GSM Module | MTK2503 |
| GSM Frequency | 850/900/1800/1900 MHZ |
| LBS Positioning Accuracy | 100-500m |
| GSM Antenna | Built-in |
| GPS Chipset | Built-in |
| GPS Sensitivity | -159 dBm |
| GPS Frequency | L1, 1575.42 MHZ |
| Channels | 20 channels examine track |
| GPS Positioning Accuracy | 5-10m, 2D RMS |
| GPS Antenna | Built-in |
| Speed Accuracy | 0.1m/s |
| Time Accuracy | Synchronize with GPS |
| Max Altitude | 18000m |
| Max Speed | 515m/s |
| Gravity Acceleration | <4g |
| Working Current | 60mA~80mA |
| Operating Temperature | -25℃—75℃ |
| Humidity | 5%—95% |
| Weight | 255g |
| Size | 86mm ×62mm × 30mm |
| Sim card | Normal sim card |
| Battery | Rechargeable Lithium polymer battery 7500mAh |
| Internal battery Standby | 3 years |
ACCESSORIES
Standard Accessories USB Charging Cable
Optional Accessories None
CERTIFICATES
