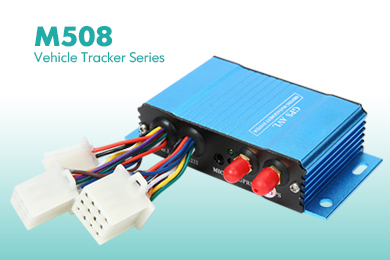

M508S
the Multiple Functional Vehicle GPS Tracker
M508S is a multifuntional vehicle GPS tracker with stable quality and precise positioning. In addition to real-time positioning, it has digital inputs for status detection and analog input for temperature/fuel level monitoring, and it has three RS232 ports for support camera, RFID reader, ultrasonic fuel sensor.
FEATURES
TWO RS232 PORTS
RS232 ports support camera, RFID reader, ultrasonic fuel sensor, TPMS and taxi meter.
FUEL LEVEL MONITORING
Instant know the fuel consumption, free you from thinking of the stealing affairs of fuel in your fleets.
ACCURATE GPS AGPS LBS POSITIONING
Real time GPS location and assisted by AGPS & LBS, the accuracy deviation is less than 5 meters.
DOOR AND AIR-CONDITIONER STATUS DETECTION
Instant know the status of door and air-conditioner, and get a notification when they turn ON.
REMOTE CUT OFF CAR ENGINE
Shut off car engine remotely through web platform, mobile application or SMS.
DETECT ACC STATUS
Whenever the car ignition turns on, you will receive a notification.
TWO-WAY COMMUNICATION
Connected with microphone and speaker, you can call the device for two-way communication.
MULTIPLE ALERTS
Instant alert for overspeed, geo-fence, parking, power off, idle status, working hours.
APPLICATIONS
SPECIFICATIONS
| Items | Parameters |
| GSM Module | Quectel M50 |
| GSM Frequency | 850/900/1800/1900 MHZ |
| LBS Positioning Accuracy | 100-500m |
| GSM Antenna | External |
| GPS Chipset | U-blox 7020 |
| GPS Sensitivity | -159 dBm |
| GPS Frequency | L1, 1575.42 MHZ |
| Channels | 20 channels examine track |
| GPS Positioning Accuracy | 5-10m, 2D RMS |
| GPS Antenna | External |
| Speed Accuracy | 0.1m/s |
| Time Accuracy | Synchronize with GPS |
| GPS Data | WGS-84 |
| Hot Start | <1s |
| Warm Start | <38s |
| Max Altitude | 18000m |
| Max Speed | 515m/s |
| Gravity Acceleration | <4g |
| Working Voltage | 8VDC～50VDC |
| Working Current | 50Ma~160Ma |
| Operating Temperature | -20℃—70℃ |
| Humidity | 5%—95% |
| Size | 96mm × 55mm × 26mm |
| Simcard | Normal simcard |
| Battery | Rechargeable lithium polymer battery 380mAh |
| Internal battery Standby | >4h |
| Input | 3pcs (including ACC detection) |
| Output | 2pcs |
| A/D input | 1pc |
| Serial port | 3pcs |
ACCESSORIES
Standard Accessories I/O cable, extend cable, power cable, relay, SOS button, GPS antenna, GSM antenna
Optional Accessories fuel sensor, temperature sensor, camera, RFID reader, TPMS
